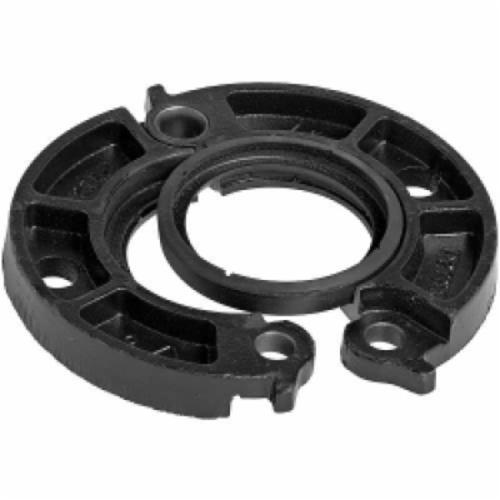

Victaulic® Vic-Flange® Adapter
Victaulic® Vic-Flange® Adapter, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron
| Compare (0) selected | Item | Properties | Quantity | Price / UOM | Availability |
|---|---|---|---|---|---|
|
GVIC7412 |
ItemType: Adapter Nominal/DiameterSize: 12 in Material: Ductile Iron Victaulic® L020741PE0 Victaulic® Vic-Flange® L020741PE0 Adapter, 2 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|
|
|
GVIC74121/2 |
ItemType: Adapter Nominal/DiameterSize: 2-1/2 in Material: Ductile Iron Victaulic® L024741PE0 Victaulic® Vic-Flange® L024741PE0 Adapter, 2-1/2 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|
|
|
GVIC7413 |
ItemType: Adapter Nominal/DiameterSize: 3 in Material: Ductile Iron Victaulic® L030741PE0 Victaulic® Vic-Flange® L030741PE0 Adapter, 3 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|
|
|
GVIC7414 |
ItemType: Adapter Nominal/DiameterSize: 4 in Material: Ductile Iron Victaulic® L040741PE0 Victaulic® Vic-Flange® L040741PE0 Adapter, 4 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|
|
|
GVIC7415 |
ItemType: Adapter Nominal/DiameterSize: 5 in Material: Ductile Iron Victaulic® L050741PE0 Victaulic® Vic-Flange® L050741PE0 Adapter, 5 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|
|
|
GVIC7416 |
ItemType: Adapter Nominal/DiameterSize: 6 in Material: Ductile Iron Victaulic® L060741PE0 Victaulic® Vic-Flange® L060741PE0 Adapter, 6 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|
|
|
GVIC7418 |
ItemType: Adapter Nominal/DiameterSize: 8 in Material: Ductile Iron Victaulic® L080741PE0 Victaulic® Vic-Flange® L080741PE0 Adapter, 8 in Nominal, Flanged x Groove End Style, 300 psi Pressure, 125/150 lb, Ductile Iron |
/
|
|

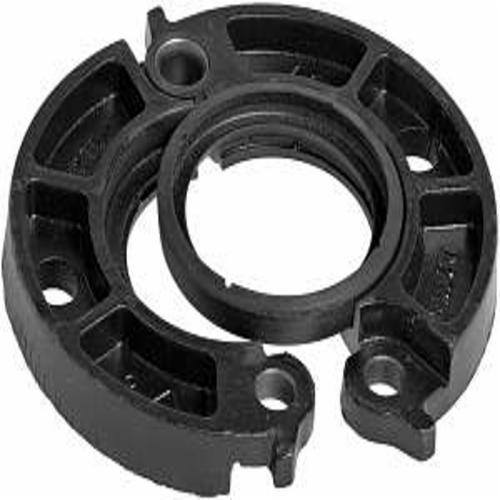

Style 741 Vic-Flange® adapter is designed for directly incorporating flanged components with ANSI CL. 125 or CL. 150/PN10 and PN16 or Australian Standard bolt hole patterns into a grooved pipe system. Sizes 2 - 12"/50 - 300 mm are hinged for easy handling with integral end tabs which facilitate assembly. Sizes 14 - 24"/350 - 600 mm are cast in four (4) identical segments which are interconnected as assembly is completed. The design incorporates small teeth inside the key shoulder I.D. to prevent rotation (excluding 159 mm size). These teeth should be removed when Vic-Flange® adapter is utilized with a Victaulic Series 700 grooved end butterfly valve, Schedule 5 pipe or plastic pipe. Vic-Flange® adapter Style 741 is not recommended for use with Victaulic Series 709 butterfly valves (contact Victaulic for recommendations). They may only be used on one side of Victaulic Series 700 butterfly valve, sizes 2 - 4"/50 - 100 mm fitted with standard or lever-lock handles. Vic-Flange® adapter must be assembled so it does not interfere with handle operation.
Victaulic® Vic-Flange® Adapter, Series: 741, 2 in Nominal, Flanged x Groove, 6-3/4 in Length, 3/4 in Thickness, 125/150 lb, 300 psi, Ductile Iron, Enamel Painted
| Item Type | : | Adapter |
| Material | : | Ductile Iron |
| Nominal/Diameter Size | : | 12 in |
